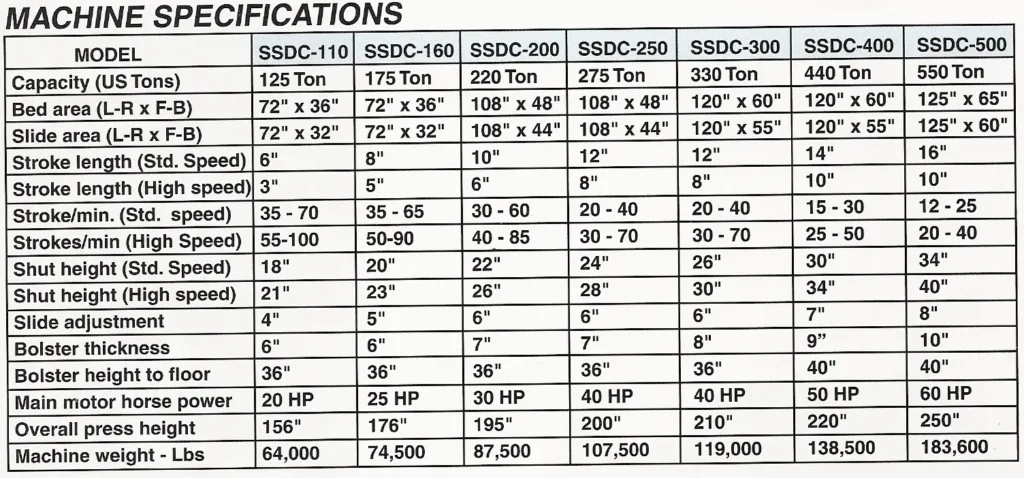

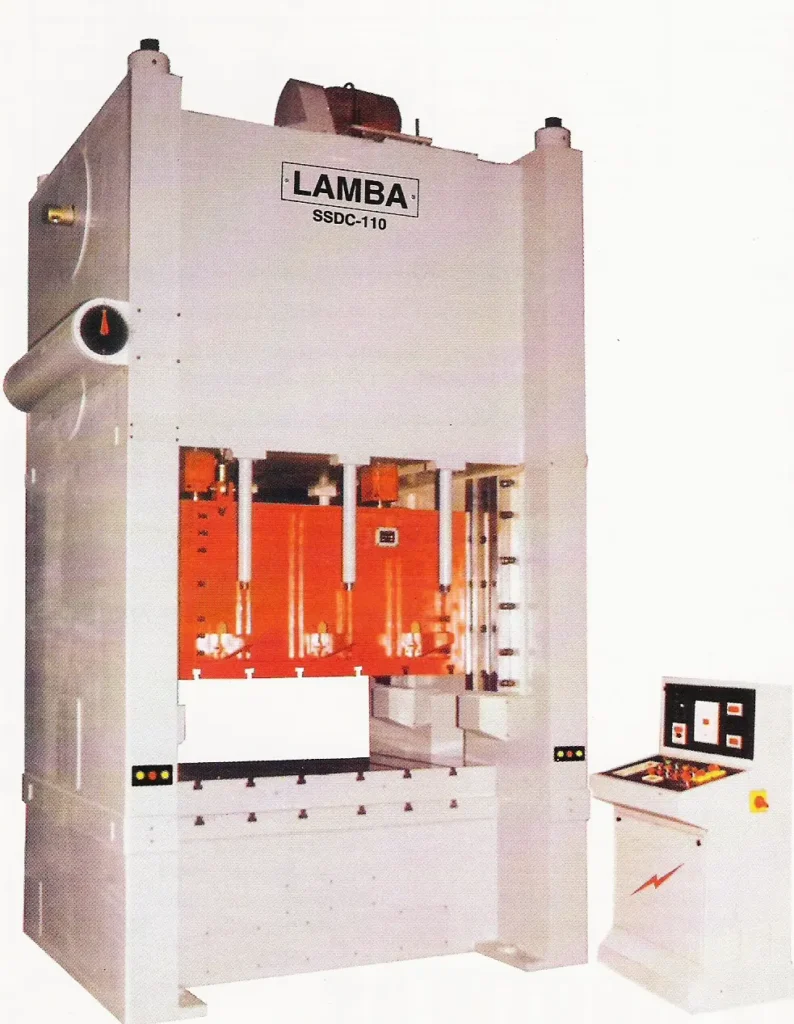

SSDC Series

Standard Features

  • Extra heavy steel fabricated reinforced, duly stress-relieved tie-rod construction frames.
  • High-torque pneumatic clutch system used (wet clutches available as an optional upgrade).
  • Steel fabricated rams with phenolic or Turcite liners, guided at 8 points.
  • Long barrel-type slide adjustment screws.
  • Pascal Japan hydraulic overload protection and de-jamming system.
  • Resolver-based Allen-Bradley / G.E. controls with dual microprocessors conforming to OSHA, NIEMA, and CE safety standards.
  • Herion dual-solenoid valve for clutch operations.
  • Lincoln automatic grease lubrication system.
  • Japanese/French make pneumatic components throughout the machine.
  • Yaskawa (Japan) brake motor for slide adjustment and micro adjustment.
  • Nishibi (Japan) die height monitor.
  • Air counter balancers.
  • Phosphor bronze bushes and ball cups with ball cup play adjustment arrangement.
  • Alloy steel crankshafts.
  • Hardened and ground double gears running in an oil bath (for geared machines).
  • Knockout mechanism.

Optional features

  • Die protection monitor supporting up to 16 sensor locations.
  • Variable speed drive system.
  • Die cushion.
  • Die lifters.
  • Hydraulic die clamps.
  • Coil and strip feeders.
  • Photoelectric safety guards.
  • Ejector mechanism.
  • Pneumatic knockout system.
  • Flywheel brake.
  • Power take-off shaft.
  • Programmable shut height control.
